Phospho-Chk1 (S345) Recombinant Rabbit Monoclonal Antibody [PS01-17]

☑ Cell treatment (CT)

Western blot analysis of Phospho-Chk1 (S345) on different lysates with Rabbit anti-Phospho-Chk1 (S345) antibody (HA721189) at 1/1,000 dilution.

Lane 1: HEK-293 cell lysate
Lane 2: HEK-293 treated with 200nM Calyculin A for 1 hour cell lysate

Lysates/proteins at 20 µg/Lane.

Predicted band size: 54 kDa
Observed band size: 56 kDa

Exposure time: 59 seconds; ECL: K1801;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721189) at 1/1,000 dilution was used in primary antibody dilution (K1803) at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

☑ Cell treatment (CT)

Western blot analysis of Phospho-Chk1 (S345) on different lysates with Rabbit anti-Phospho-Chk1 (S345) antibody (HA721189) at 1/1,000 dilution.

Lane 1: NIH/3T3 cell lysate
Lane 2: NIH/3T3 treated with UV for 20 minutes then recover for 2 hours cell lysate

Lysates/proteins at 20 µg/Lane.

Predicted band size: 54 kDa
Observed band size: 56 kDa

Exposure time: 1 minute; ECL: K1802;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721189) at 1/1,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1/50,000 dilution was used for 1 hour at room temperature.

☑ Cell treatment (CT)

Western blot analysis of Phospho-Chk1 (S345) on different lysates with Rabbit anti-Phospho-Chk1 (S345) antibody (HA721189) at 1/1,000 dilution.

Lane 1: HeLa cell lysate
Lane 2: HeLa treated with Etoposide cell lysate
Lane 3: HeLa cell lysate
Lane 4: HeLa treated with Hydroxyurea cell lysate

Lysates/proteins at 10 µg/Lane.

Predicted band size: 54 kDa
Observed band size: 56 kDa

Exposure time: 5 minutes;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (HA721189) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody (HA1001) at 1:300,000 dilution was used for 1 hour at room temperature.

☑ Cell treatment (CT)

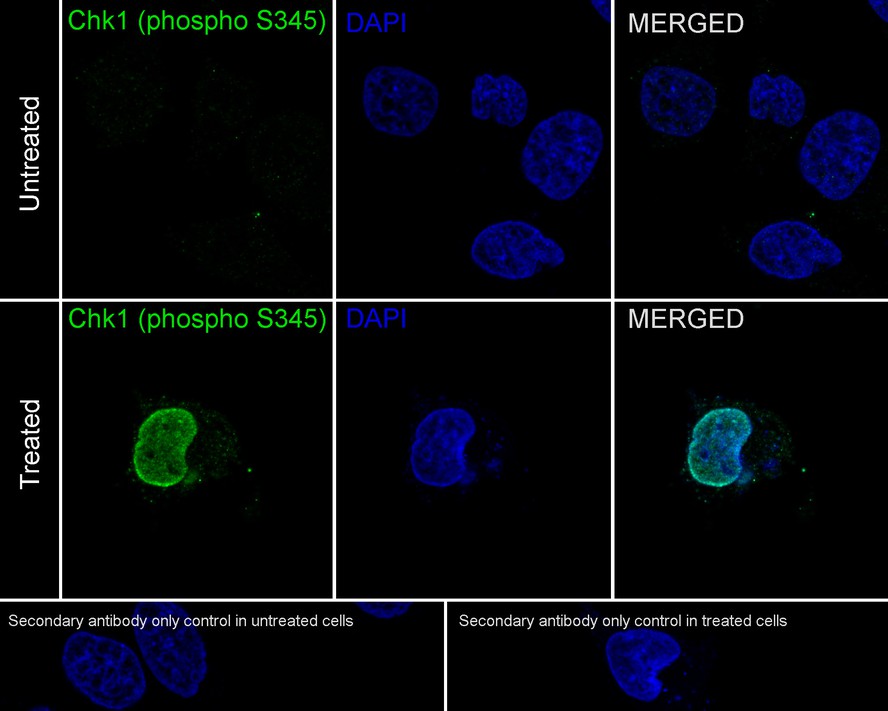

Immunocytochemistry analysis of HeLa cells treated with or without 4mM Hydroxyurea for 20 hours labeling Phospho-Chk1 (S345) with Rabbit anti-Phospho-Chk1 (S345) antibody (HA721189) at 1/200 dilution. Image shown an increased nuclear staining upon Hydroxyurea treatment.

Cells were fixed in 4% paraformaldehyde for 20 minutes at 37 ℃, permeabilized with 0.1% Triton X-100 in PBS permeabilization for 5 minutes, and then blocked with 2% negative goat serum for 60 minutes at room temperature. Cells were then incubated with Rabbit anti-Phospho-Chk1 (S345) antibody (HA721189) at 1/200 dilution in 1% BSA overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488, HA1121) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
